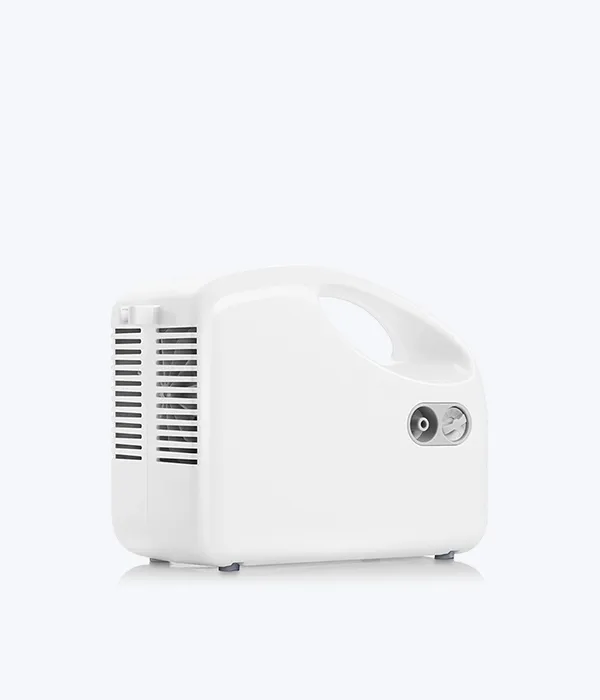

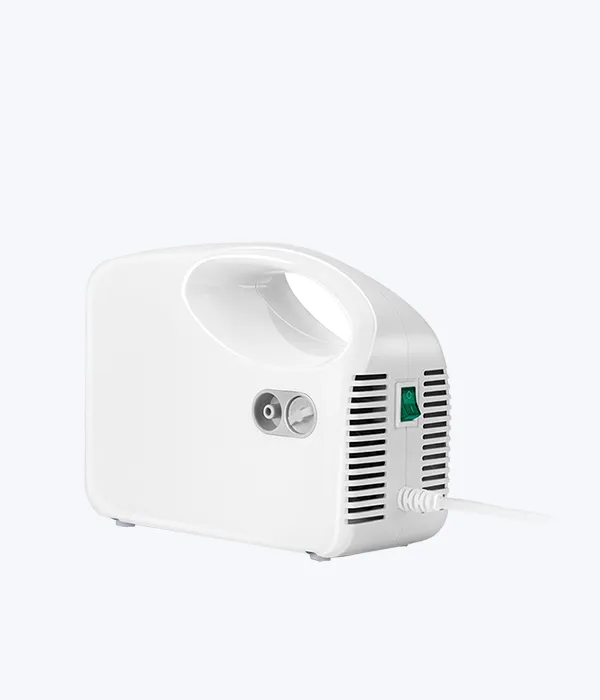

PCN - 011 Compressor Nebulizer
PCN-011 Compressor Nebulizer converts liquid medication into fine aerosol mist for easy inhalation, providing effective respiratory treatment for adults and children. It is designed for home and clinical use, stable and easy to operate.
Product Features
1. Creates fine aerosol particles (0.5–10 μm) for efficient respiratory absorption
2. Stable compressor system with reliable pressure and flow
3. Low noise operation (≤65 dB(A))
4. Compact, lightweight, easy to use and store
5. Safe Class II electric shock protection
6. Long service life (up to 5 years)
Product Parameters
Product Name | Compressor Nebulizer |
Model No. | PCN-011 |
Medication capacity | 10 ml |
Liter flow | ≥6.7 L/min |
Compressor pressure | 22–58 psi (150–400 kPa) |
Operating pressure | 9.5–19 psi (65–130 kPa) |
Noise Level | ≤65 dB(A) at 1 meter |
MMAD | ≤ 5 µm |
Power | 168VA |
Nebulization Rate | ≥0.25 mL/min (0.9% saline) |
Operating pressure | 9.5–19 psi (65–130 kPa) |
Operating temp | 5°C–40°C |
Operating humidity | 10%–95% RH |

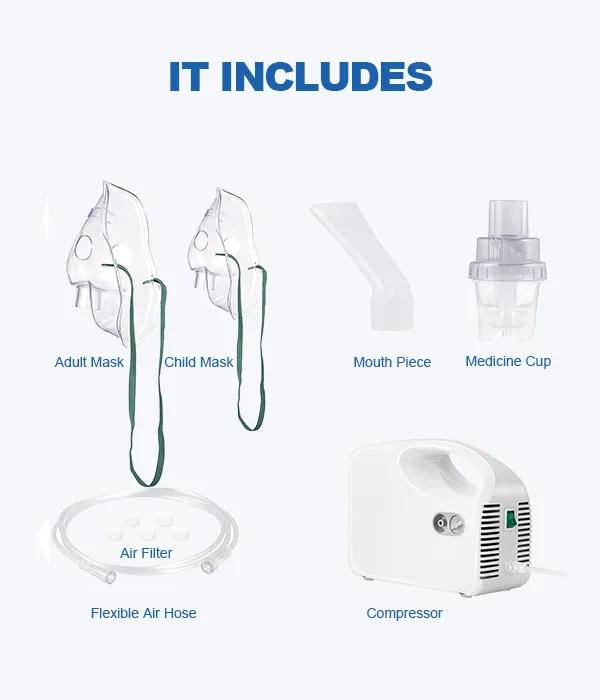

Packing List | 1 × Nebulizer, 1 x Cup, 1 × Air tube, 1 × Adult mask, 1 × Child mask, 5 × Air filters, 1 x Manual |
Dimensions | 180×150×80 mm |
Service life | 5 years |
Protection class | Class II |
Operating Steps
1. Clean the nebulizer thoroughly before first use.
2. Prepare the prescribed liquid medication and pour into the nebulizer cup.
3. Connect the mouthpiece, mask or pacifier inhaler to the nebulizer.
4. Plug in the power cord and turn on the device.
5. Inhale the aerosol mist normally as directed by a physician.
6. After treatment, turn off the unit and unplug it.
7. Clean and disinfect the nebulizer after daily use.
