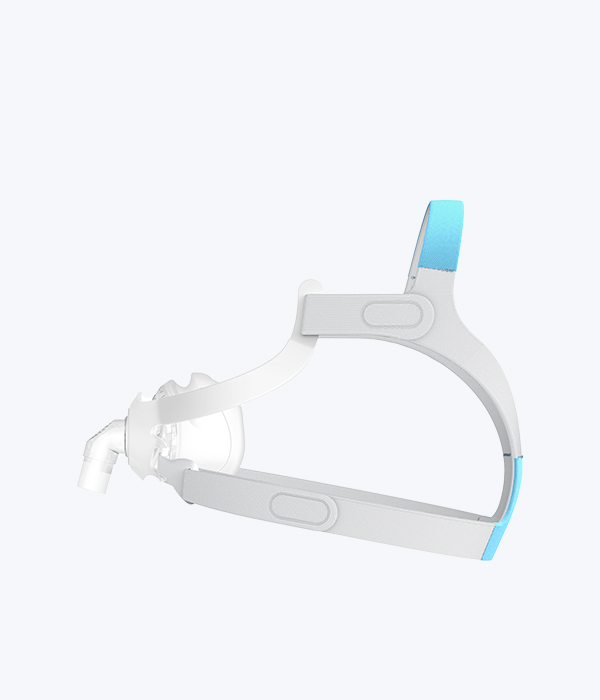

NM-N6A Nasal Mask
NM-N6A Nasal Mask is next-generation nasal CPAP/BIPAP mask engineered for non-invasive ventilation therapy. It combine ultra-lightweight frames, adaptive silicone cushions, and a one-hand detachable hose system, delivering a comfortable, low-leakage, and quiet breathing experience for sleep apnea treatment. Available in S/M/L sizes, It is designed to fit diverse facial contours and user preferences.
Product Features
1. One-hand Detachable Breathing Hose: The swivel joint and small tube can be quickly installed and removed, allowing users to temporarily disconnect the mask from the device with one hand. Comes with a 90cm long, 15mm diameter lightweight hose for flexible movement.
2. Pleated Adaptive Silicone Pad: The pleated adaptive silicone pad, paired with a self-adjusting frame, automatically conforms to facial contours, relieves pressure on the nose bridge, and ensures a secure, comfortable seal.
3. Upgraded Frame Design: A smaller, lighter main frame reduces facial coverage, minimizes claustrophobia, and enhances overall comfort during extended wear.
4. Matrix Multi-vent Holes: Optimized airflow trajectory design reduces turbulence and eddies, effectively lowering noise levels for a quiet, undisturbed sleep environment.
5. No Forehead Support: Forehead pod-free design provides an unobstructed, wide field of vision, perfect for users who prefer minimal facial contact and clear visibility.
Accessory Replacement Cycle
Silicon cushion: Every 6 months
Headgear: Every 6 months
Mask frame: Every 12-18 months
Specification (Dimension Details)
| Size | H(mm) | W(mm) | T(mm) |
| Large | 61.6 | 61.6 | 53.5 |
| Medium | 57.7 | 56.0 | 53.5 |
| Small | 51.4 | 51.8 | 55.5 |
Wearing Instructions (Step-by-Step)
1. Prepare the Headgear: Loosen the headgear straps to a comfortable length, and ensure the detachable hose is properly connected to the mask frame.
2. Position the Mask: Place the nasal cushion over your nose, ensuring a full, leak-free seal around the nasal bridge and cheeks. Position the mask securely on the nose without forehead contact.
3. Secure the Headgear: Fasten the top and side headgear straps evenly, adjusting tension to achieve a snug fit without excessive pressure.
4. Connect the Device: Attach the main breathing tube to the quick-disconnect swivel joint on the mask.
5. Final Adjustment: Check for air leaks around the cushion, fine-tune the headgear straps, and confirm the hose position for unobstructed movement during sleep.
Cleaning & Maintenance
Daily Use: Gently wash mask accessories (except headgear) with mild soap in warm water. After cleaning, air-dry naturally. Use a soft brush to clean the vent holes.
Weekly Washing: Hand-wash the headgear. Soak it in warm soapy water for less than 10 minutes, then dry it naturally. Avoid direct sunlight to prevent material damage.
