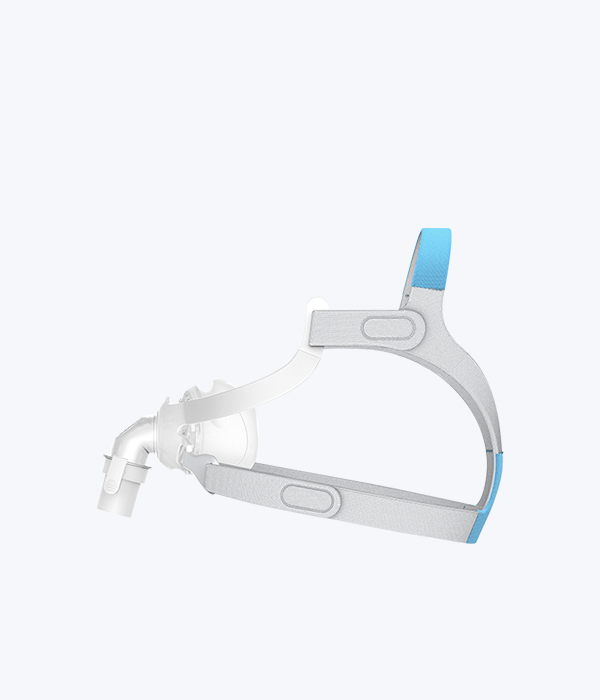

NM-N5A Nasal Mask
NM-N5A Nasal Mask is premium nasal mask designed for CPAP/BIPAP non-invasive ventilation therapy. It is lightweight, ergonomic frames, adaptive silicone cushion, and user-friendly quick-connect design, delivering a comfortable, low-leakage, and quiet breathing experience for sleep apnea treatment. Available in S/M/L sizes, it cater to diverse facial contours.
Product Features
1. Quick Disassembly and Fitting Connector: Connected by a quick-disassembly connector, making it easy for the user to connect and separate the mask from the device (compatible with 22mm diameter breathing tubes).
2. Pleated Adaptive Silicone Pad: The pleated adaptive silicone pad design, combined with the self-adjusting frame, automatically adjusts to fit the face and relieves the pressure on the bridge of the nose.
3. Matrix Multi-vent Holes: Simulates and analyzes the airflow trajectory to reduce the generation of turbulence and eddies, effectively reduce noise, ensuring quiet and comfortable use.
4.Upgraded Frame Design: The smaller and lighter main frame allows the mask to cover a smaller area, reducing the feeling of claustrophobia and improving overall comfort.
5.No Forehead Support: The forehead pod-free design provides a wide field of vision without obstruction, ideal for users who prefer an unobstructed view and minimal facial contact.
Accessory Replacement Cycle
Silicon cushion: Every 6 months
Headgear: Every 6 months
Mask frame: Every 12-18 months
Specification (Dimension Details)
| Size | H(mm) | W(mm) | T(mm) |
| Large | 61.6 | 61.6 | 53.5 |
| Medium | 57.7 | 56.0 | 53.5 |
| Small | 51.4 | 51.8 | 53.5 |
Wearing Instructions (Step-by-Step)
1. Prepare the Headgear: Adjust the headgear straps to a loose, comfortable length, and ensure the quick-connect connector is properly attached to the mask frame.
2. Position the Mask: Place the nasal cushion over your nose, ensuring a full seal around the nasal bridge and cheeks. Position the mask to sit securely on the nose without forehead contact.
3. Secure the Headgear: Fasten the top and side headgear straps evenly, adjusting tension to achieve a snug, leak-free fit without excessive pressure.
4. Connect the Device: Attach the 22mm breathing tube to the quick-disconnect connector on the mask.
5. Final Adjustment: Check for air leaks around the cushion, and fine-tune the headgear straps and cushion position to ensure comfort and a secure seal throughout the night.
Cleaning & Maintenance
Daily Use: Gently wash mask accessories (except headgear) with mild soap in warm water. After cleaning, air-dry naturally. Use a soft brush to clean the vent holes.
Weekly Washing: Hand-wash the headgear. Soak it in warm soapy water for less than 10 minutes, then dry it naturally. Avoid direct sunlight.
