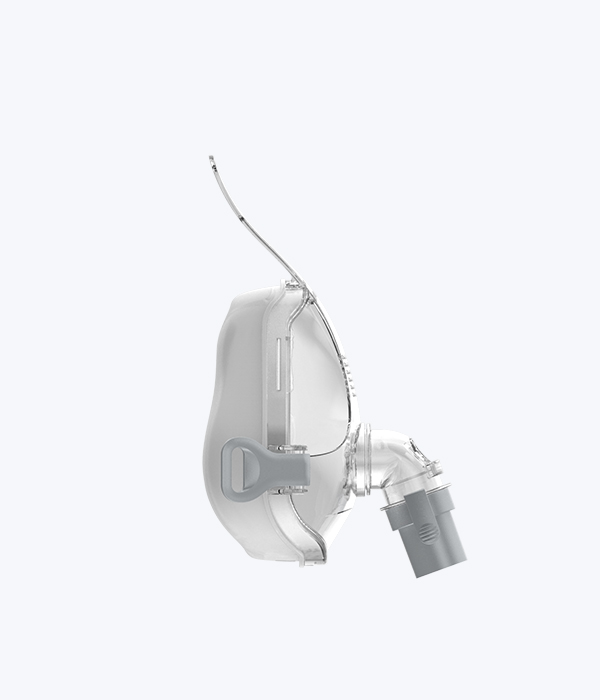

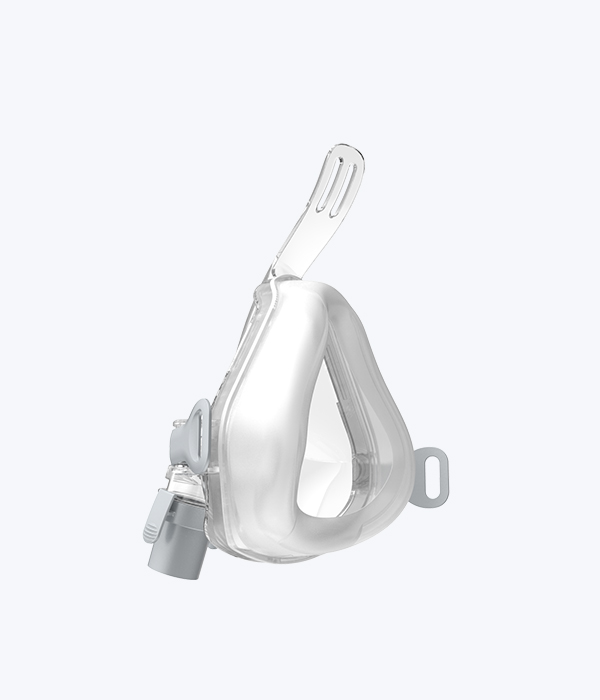

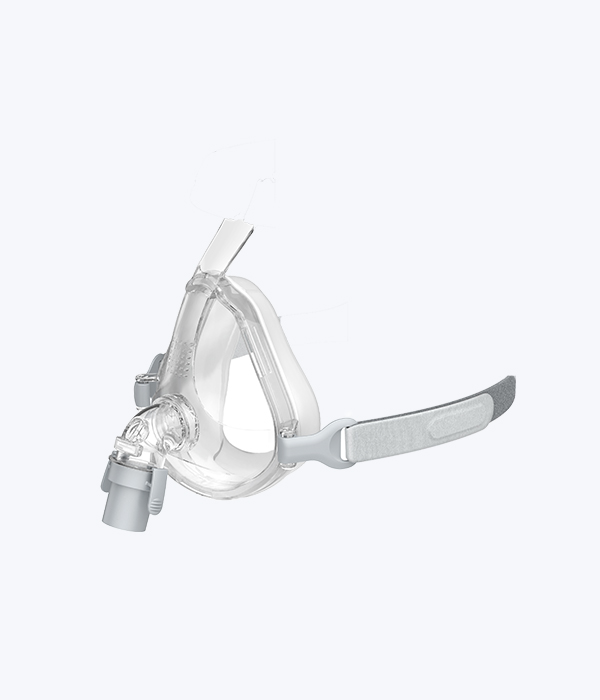

FM-F3 Full Face Mask
FM-F3 Full Face Mask is a newly upgraded full-face mask designed for CPAP/BIPAP non-invasive ventilation therapy. It features structural optimizations, skin-friendly materials, and user-centric design, delivering a natural, comfortable, and secure breathing experience suitable for various non-invasive ventilators.
Product Features
1. Ergonomic & Structural Upgrades: Single-layer thickening headband: Skin-friendly, soft and durable for long-time wear.
2. No need to adjust fast wearing: Streamlined design for quick donning/doffing without complex adjustments.
3. Perfect free-dom of movement: 360° swivel elbow enables unrestricted tubing movement; flexible headgear supports natural sleeping positions.
4. Structural upgrade: Newly upgraded single-layer liquid silicone process ensures a perfect facial fit; enhanced forehead support bracket provides a flexible adjustment range for personalized comfort.
5. Safe to use: Medical-grade odorless silica gel (non-toxic, safe for long-term contact); skin-friendly headgear passed BIOC test, suitable for sensitive skin.
6. Easy to use: Headgear buckle can be quickly removed/disassembled for simplified wearing, removal and daily cleaning.
Specification (Dimension Details)
| Size | H (mm) | W (mm) | L (mm) |
| Large | 186.8 | 123 | 99 |
| Medium | 181.2 | 122 | 99.1 |
| Small | 163.4 | 114 | 96.8 |
Note: the width is according to cushion size
Wearing Instructions (Step-by-Step)
1. Assemble Headgear: Place the headgear into an "inverted triangle" shape with the black side up, then fasten the upper straps through the buckles on the top of the mask frame.
2. Wear the Mask: Put the mask on your face and secure the headgear to hold the mask in place.
3. Secure Lower Straps: Fasten the lower parts of the headgear to the two side buckles of the mask.
4. Adjust for Fit: Tweak the position of the headgear and forehead bracket to ensure the mask fits snugly and comfortably on the face.
Cleaning Guide
Daily Use: Gently wash mask accessories (excluding headgear) with mild soap and warm water. After cleaning, air-dry naturally; use a soft brush to clean vent holes thoroughly.
Weekly Washing: Hand-wash headgear. Soak it in warm soapy water for less than 10 minutes, then air-dry naturally. Avoid direct sunlight to prevent material damage.
Accessory Replacement
Silicon cushion: Replace every 6 months
Headgear: Replace every 6 months
Mask frame: Replace every 12–18 months
